Product Specification
Frame
Frame - Xroad Open, 6061 T4-T6 alloy, hydroformed tubes and extruded triple cavity tubes for optimal stiffness, Bosch PowerTube battery integration, integrated cable routing

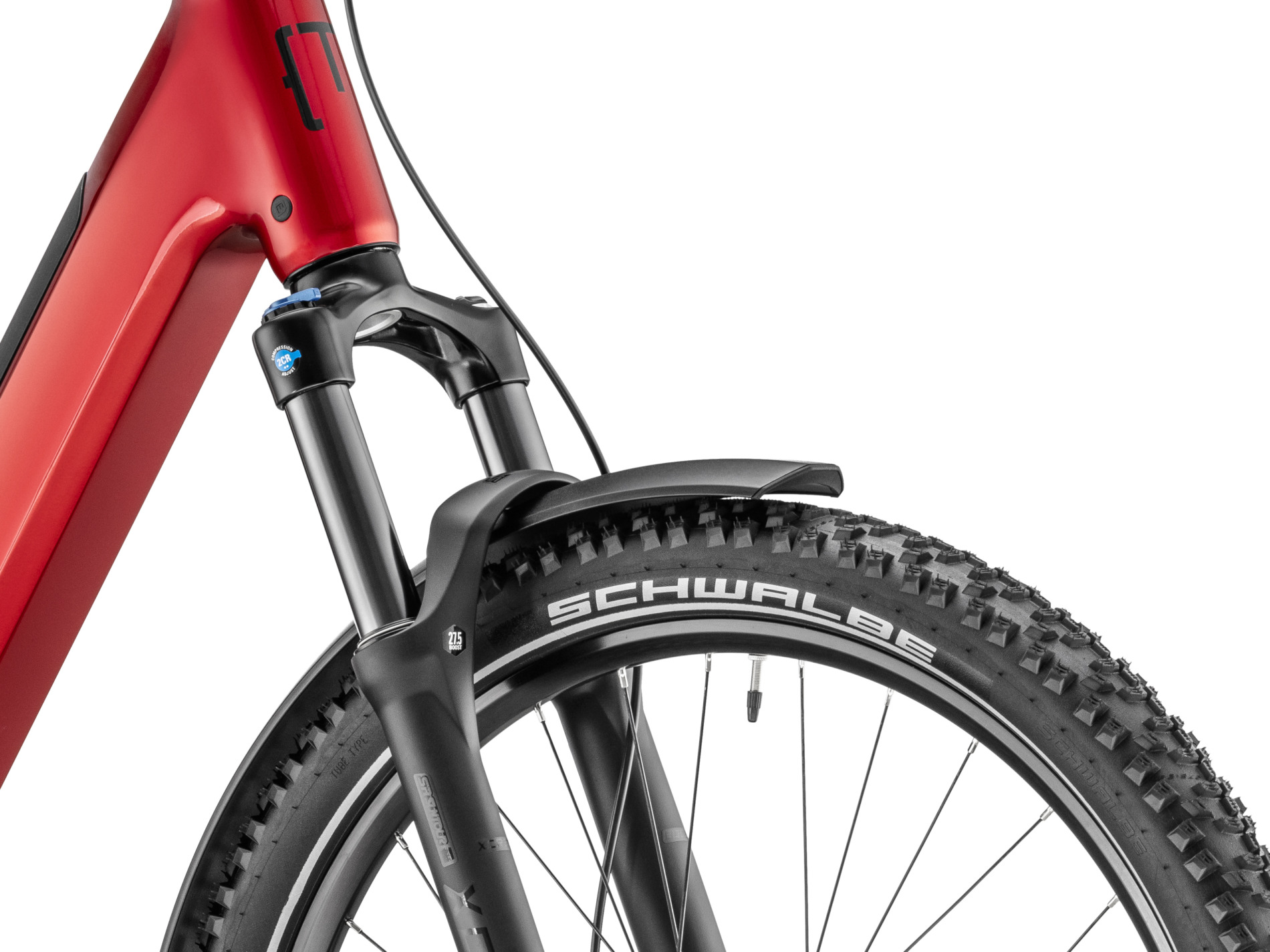

Fork - SR Suntour, XCR 34, lockout function, 120mm travel
Motor system

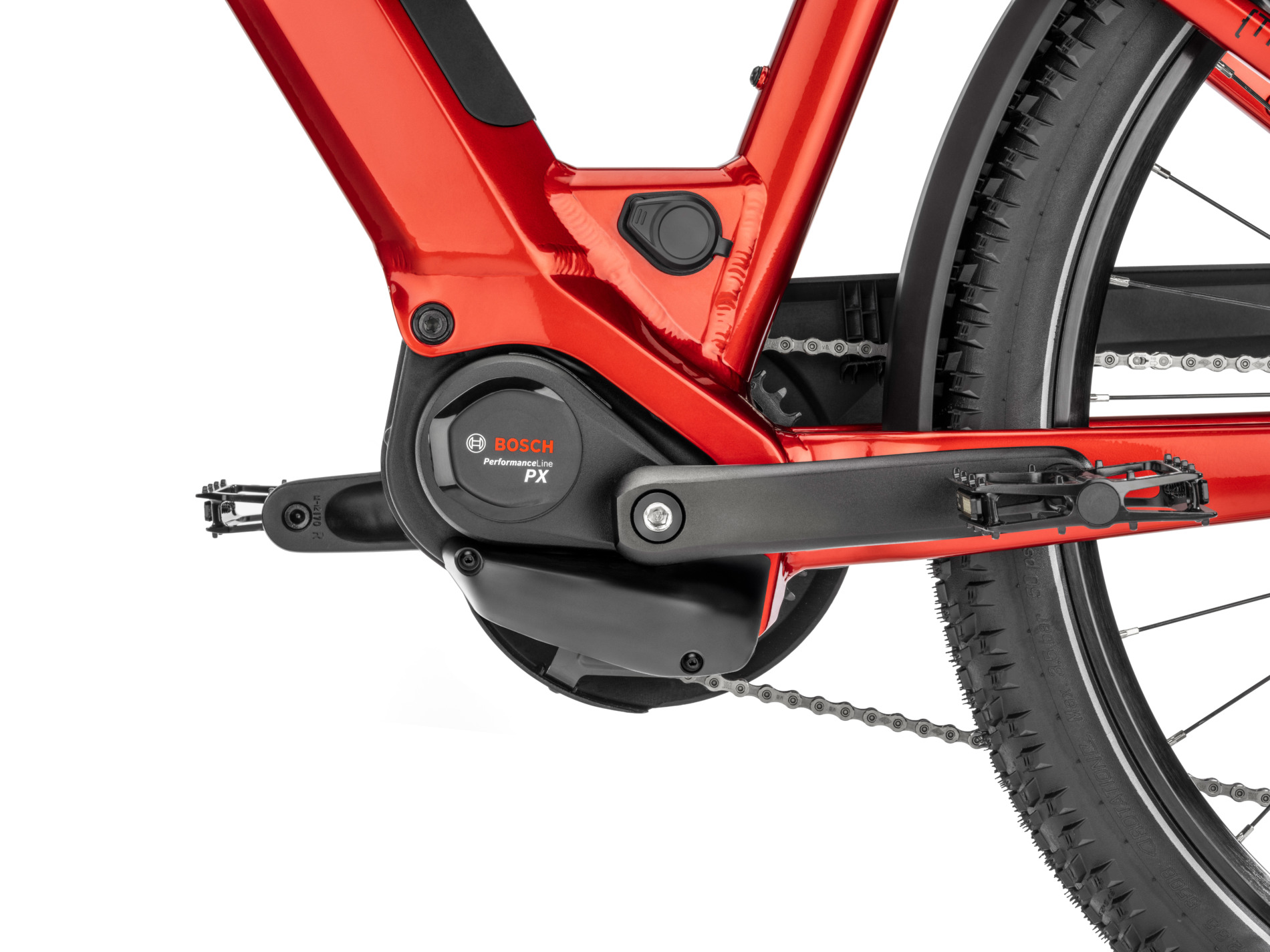

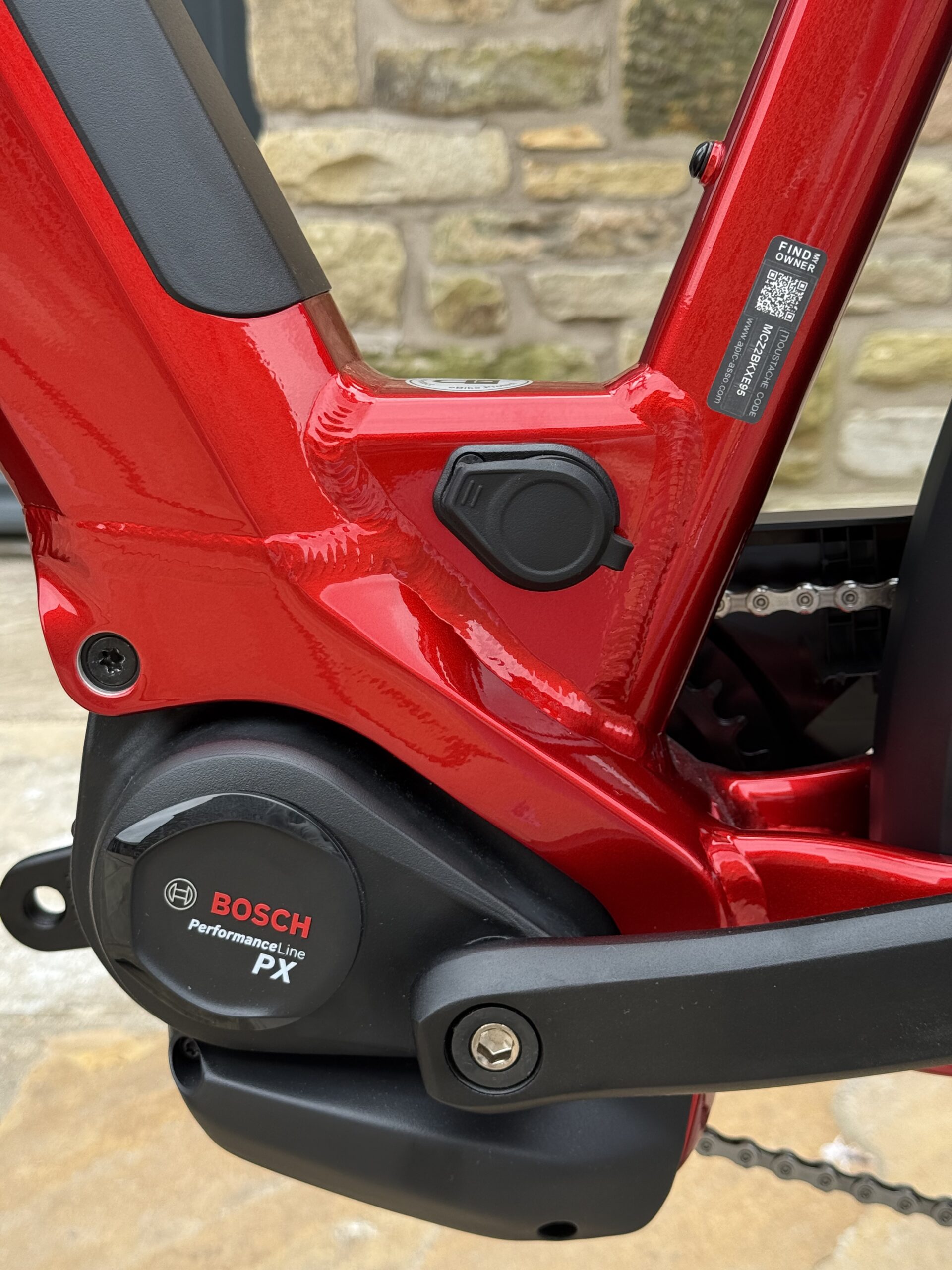

Motor - Bosch, Performance Line PX BDU34, Smart System, 90 Nm
Battery - Bosch, PowerTube 600Wh, Smart System
Autonomy - 144km
Charger - Bosch, 4Ah
Remote - Bosch, Purion 200, Smart System
Conditions - Maximum distance, calculated for a 70kg rider in ideal conditions.
Transmission
Rear Derailleur - Shimano, CUES, RD-U6020, 10-speed
Chainring - Narrow-Wide, 38 teeth
Cassette - Shimano, CUES, CS-LG300 10-speed, 11-39T
Chain - Shimano, CN-LG500, 120 links
Shifter - Shimano, CUES, SL-U6000-10R, 10-speed
Cranks - Stronglight, aluminium, 170mm, ISI
Brakes
Front Rotor - Shimano, 180mm
Rear Rotor - Shimano, 180mm

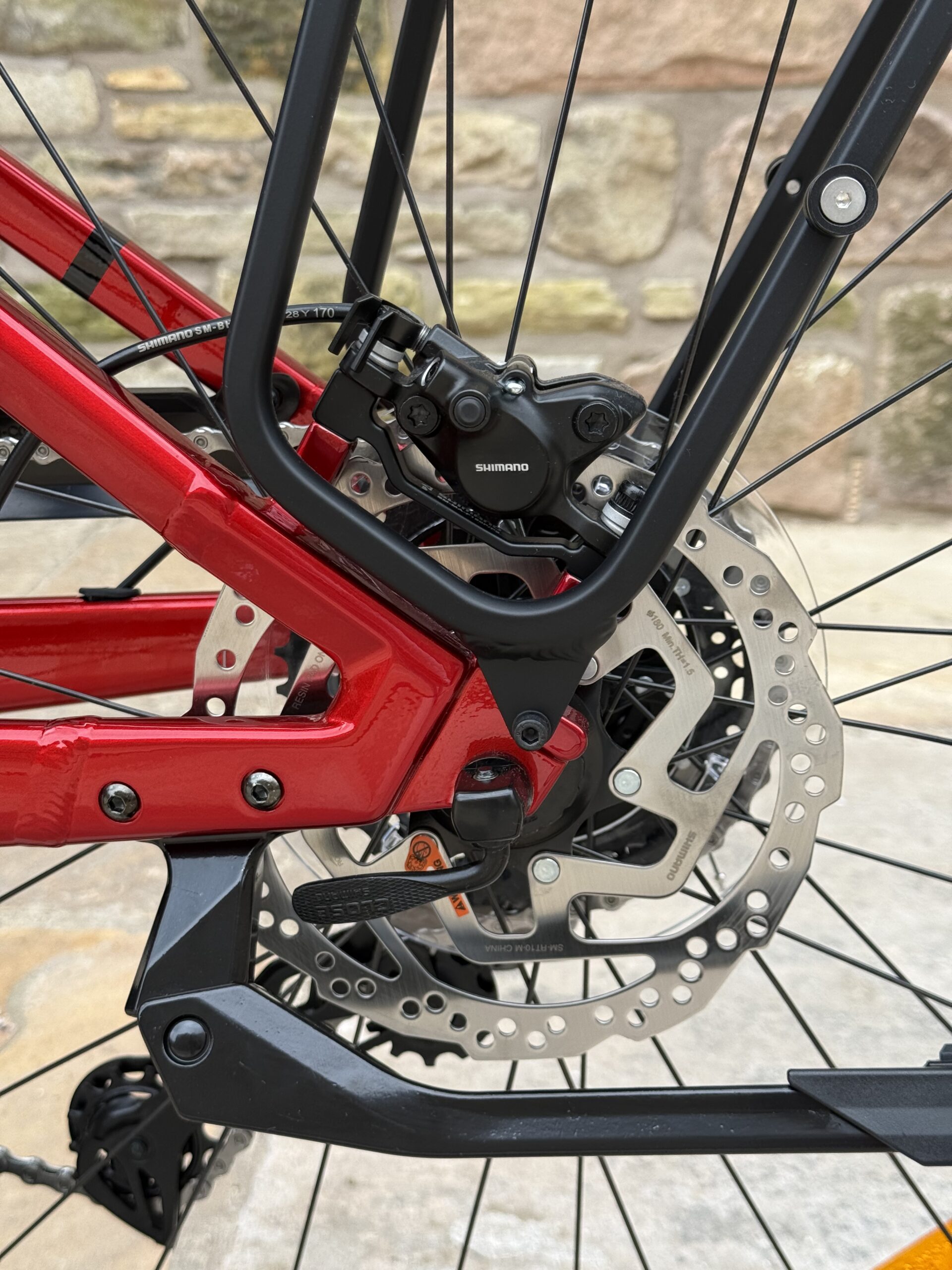

Front brake - Shimano, MT200, hydraulic disc
Rear Brake - Shimano, MT200, hydraulic disc
Wheels
Front Hub - Shimano, 32H, 15x110mm, thru axle
Rear Hub - Shimano, 32H, 9x100mm, QR (Quick Release)
Front rim - Alloy , 32 holes, 27.5', internal width 27 mm
Rear rim - Alloy , 32 holes, 27.5', internal width 27 mm
Front tyre - Schwalbe, Smart Sam, 27.5x2.6 / 2.35
Cockpit
Saddle - Selle Royal, Essenza + moderate

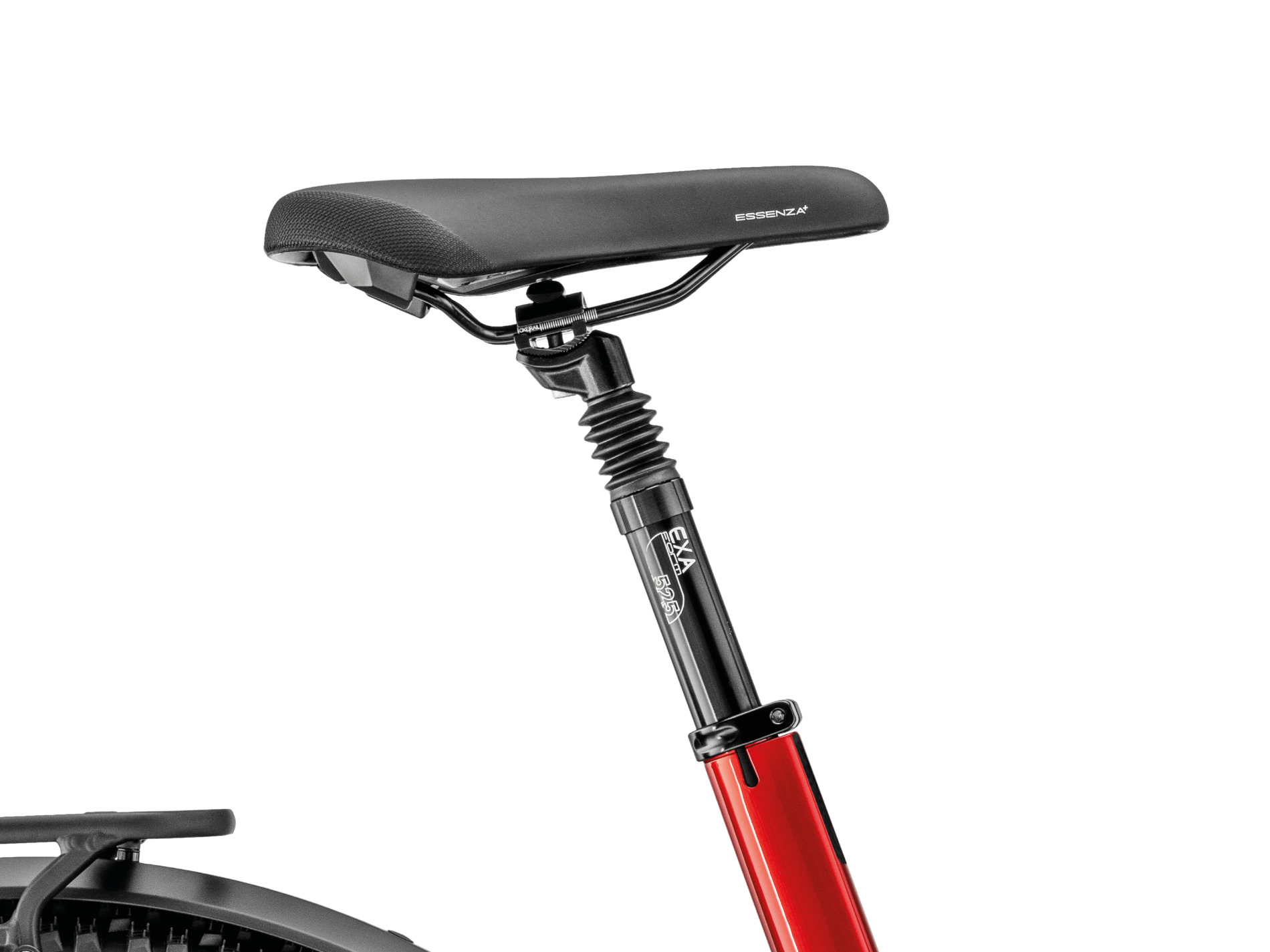

Seatpost - Suspension, alloy, 31.6mm, 350mm, 40mm travel
Seatclamp - Moustache, alloy, 34.9mm
Handlebar - Moustache, ergonomic, alloy, 660mm, 30° backsweep
Stem - Moustache, alloy, adjustable, 65mm
Headset - Acros, AZF-699, sealed bearings, internal routing, blocklock
Grips - SB3, Ergonomic
Equipment
Front light - AXA, NXT, 80 lux, powered by main battery
Rear light - Spanninga, Presto2Guard, powered by main battery
Horn - Spanninga Minibell Black

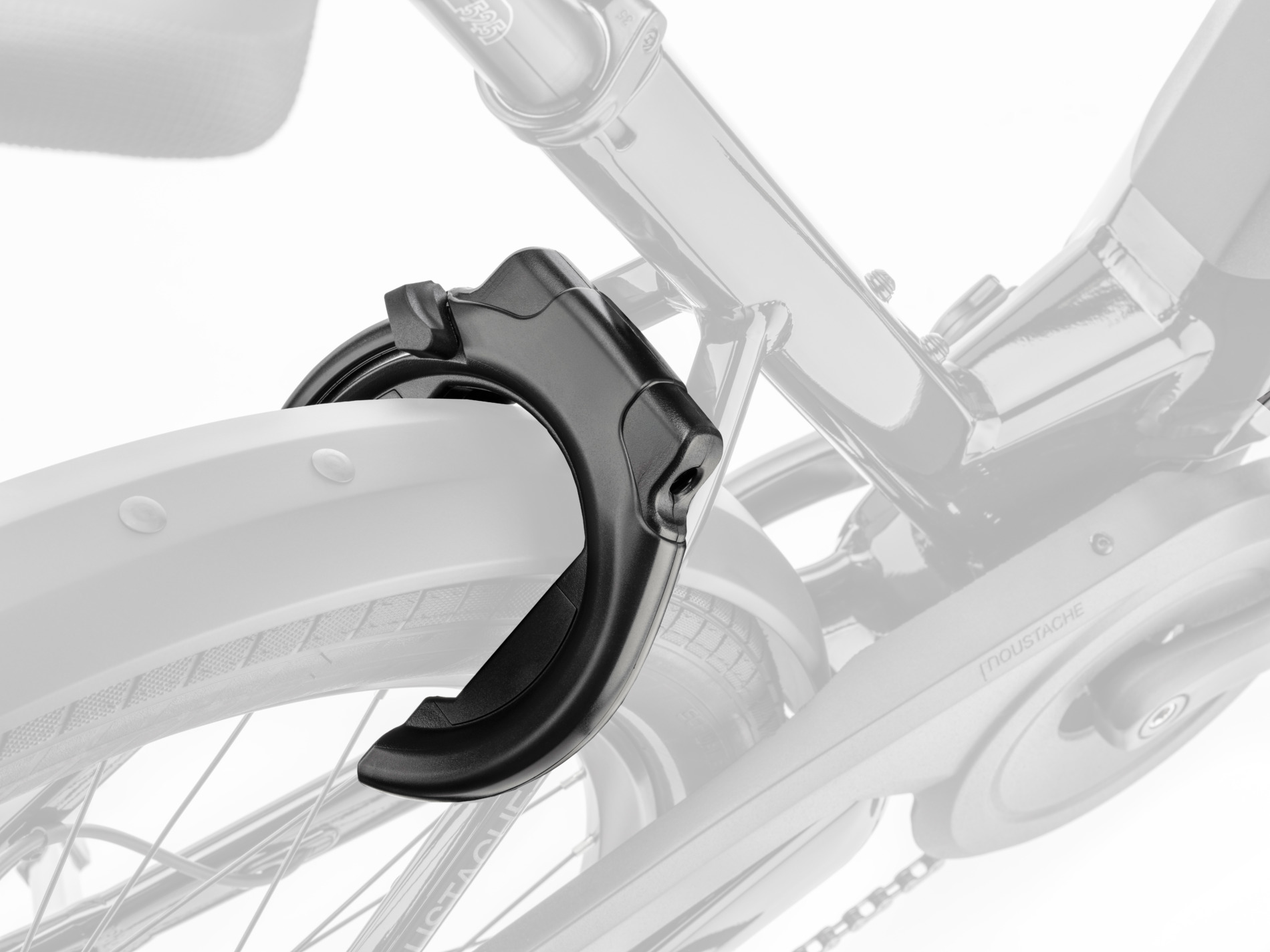

Lock - ABUS, 4650SL,, same key for framelock & battery lock
Kickstand - Moustache, adjustable
Mudguard - Moustache, alloy, double wall design, w/alloy stays

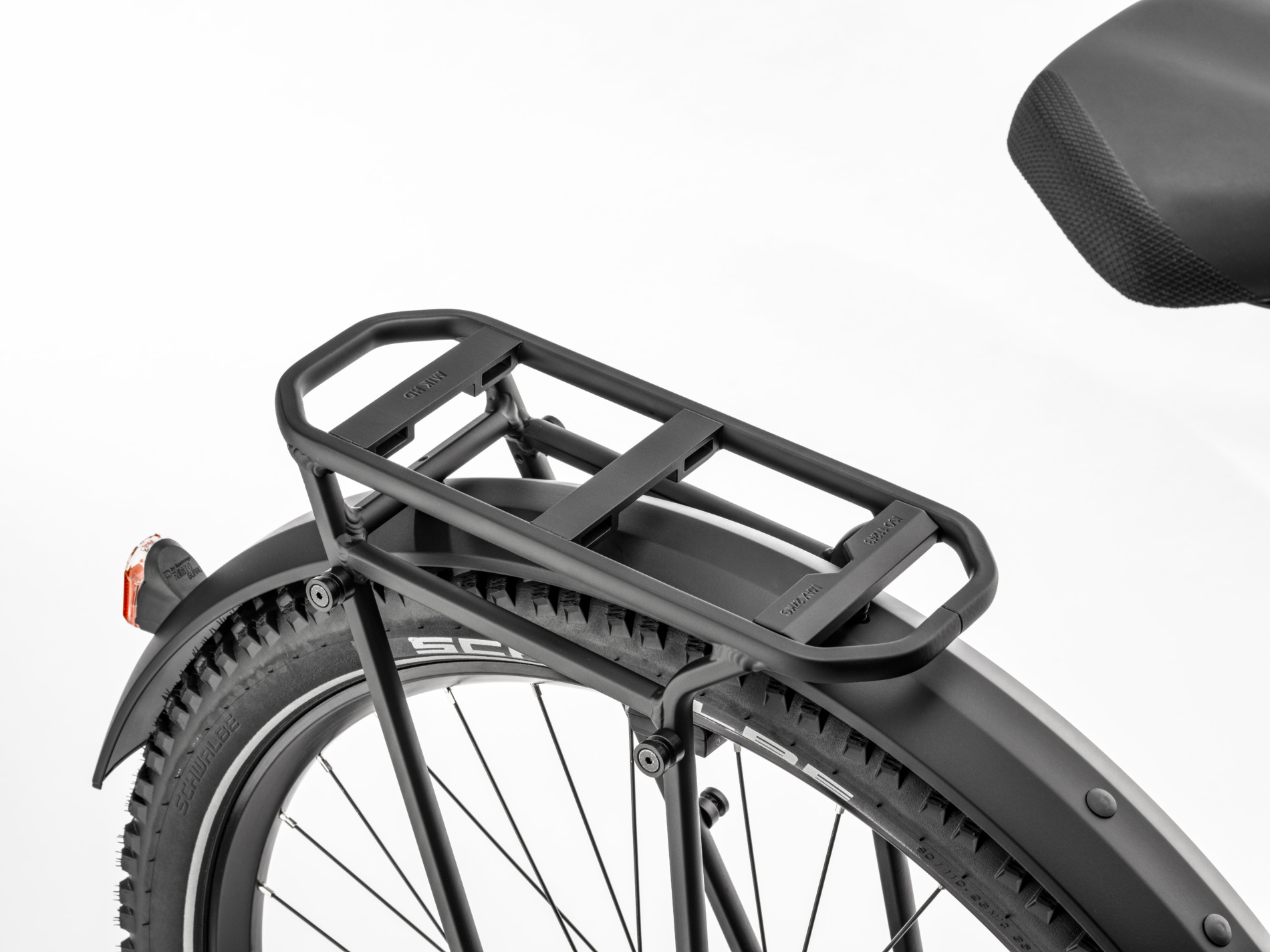

Carrier - Moustache, alloy, removable QL3 lateral fixation, MIK HD platform. Moustache protect option.
Pedals - alloy platform with reflectors
Features
Color

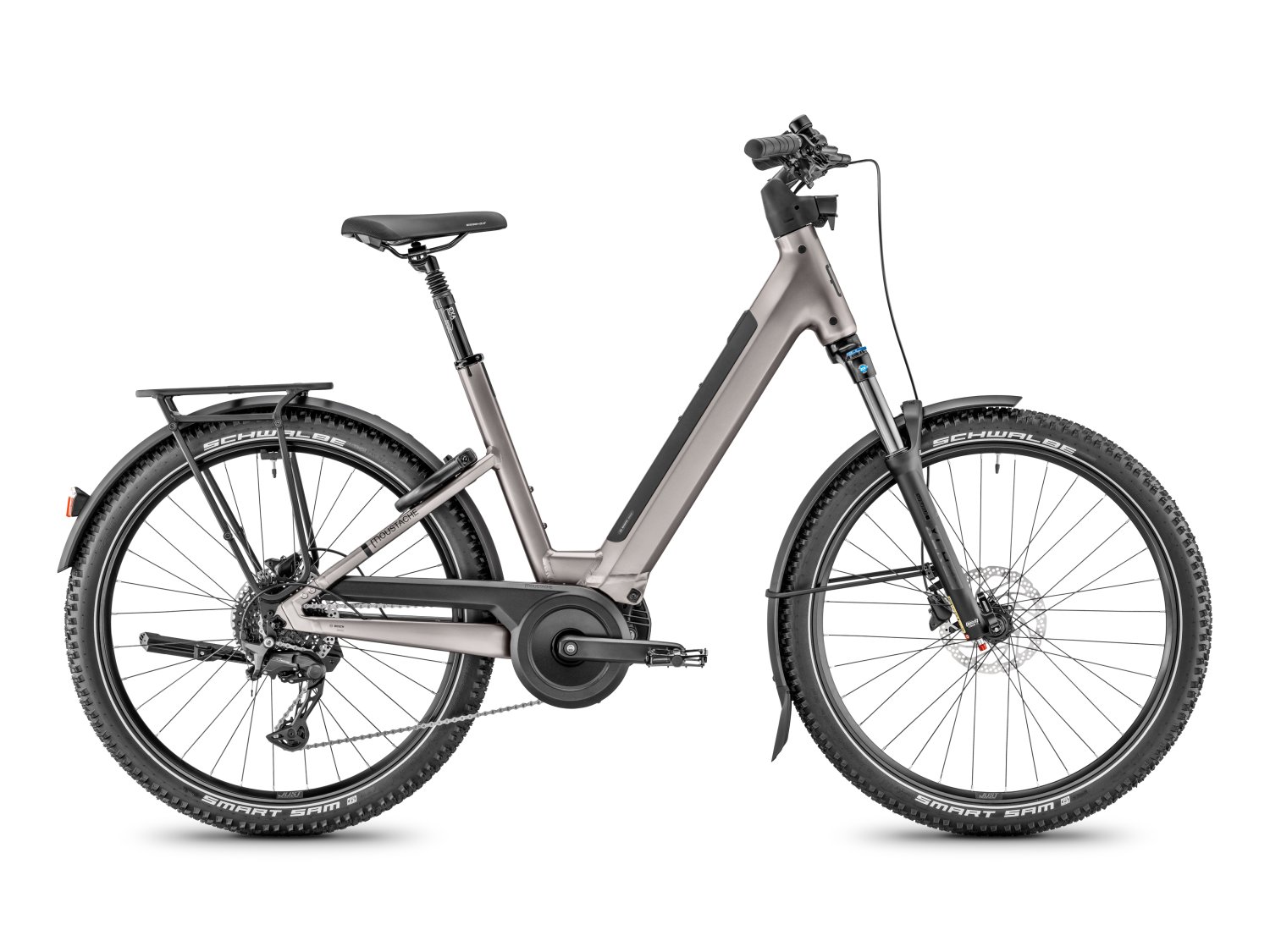

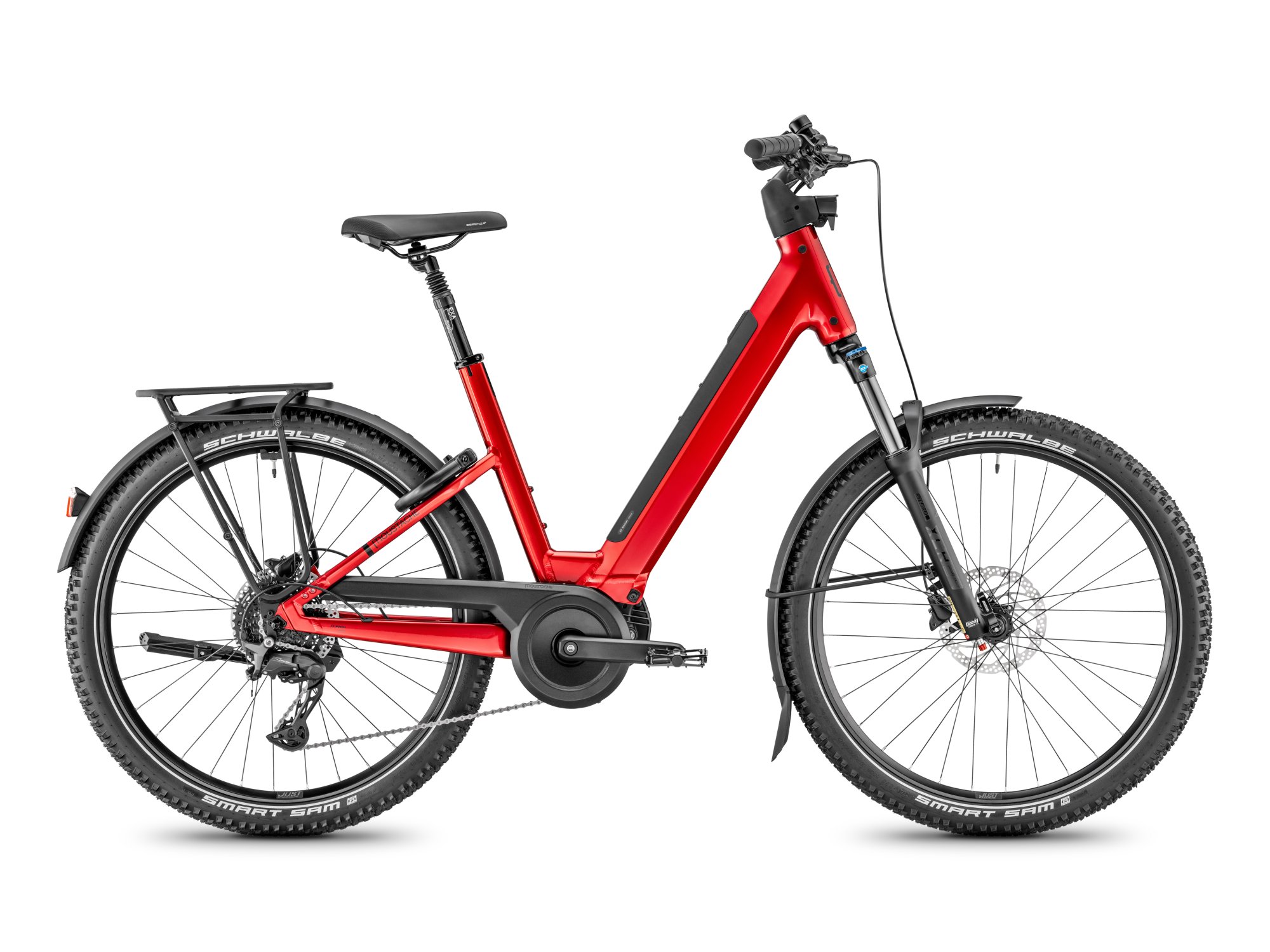

Metalic deep red glossy; Oak Green Metallic; Titanium Matt
Weight
26.2kg
GVWR
160kg
Warranty
Warranty
5 years frame and fork Moustache Bikes - 2 years motor, battery
Prices and product specifications may change without prior notice. Non-contractual information.
