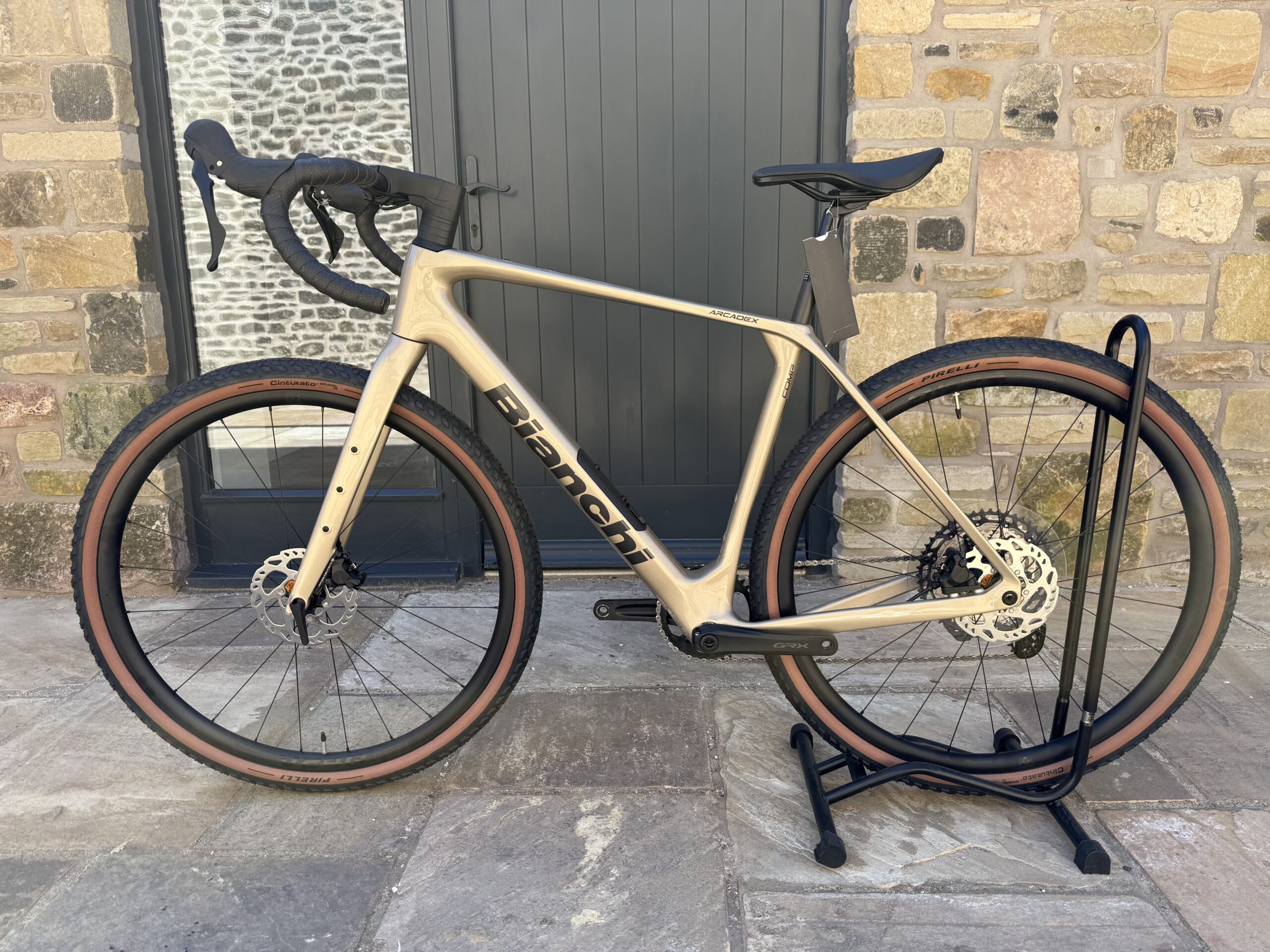

Bianchi – Arcadex Comp GRX 610/822 SGS 2026

From £2,790.00

Bianchi

FREE shipping on orders over £60!

Product Details

Information

Description

THE NEW ARCADEX

A CAPABLE GRAVEL BIKE EQUIPPED FOR ADVENTURE, BIKEPACKING AND DISCOVERING NEW FRONTIERS.

Engineered to take you further. Further outside your usual riding locale. Further into the wilderness. Further beyond your comfort zone.  A gravel bike designed to be capable of supporting you on the most adventurous rides with innovative features to augment exploration.

The result is the new Arcadex, an intrepid, rugged adventure machine that will take you further than ever

DEDICATED FRAME

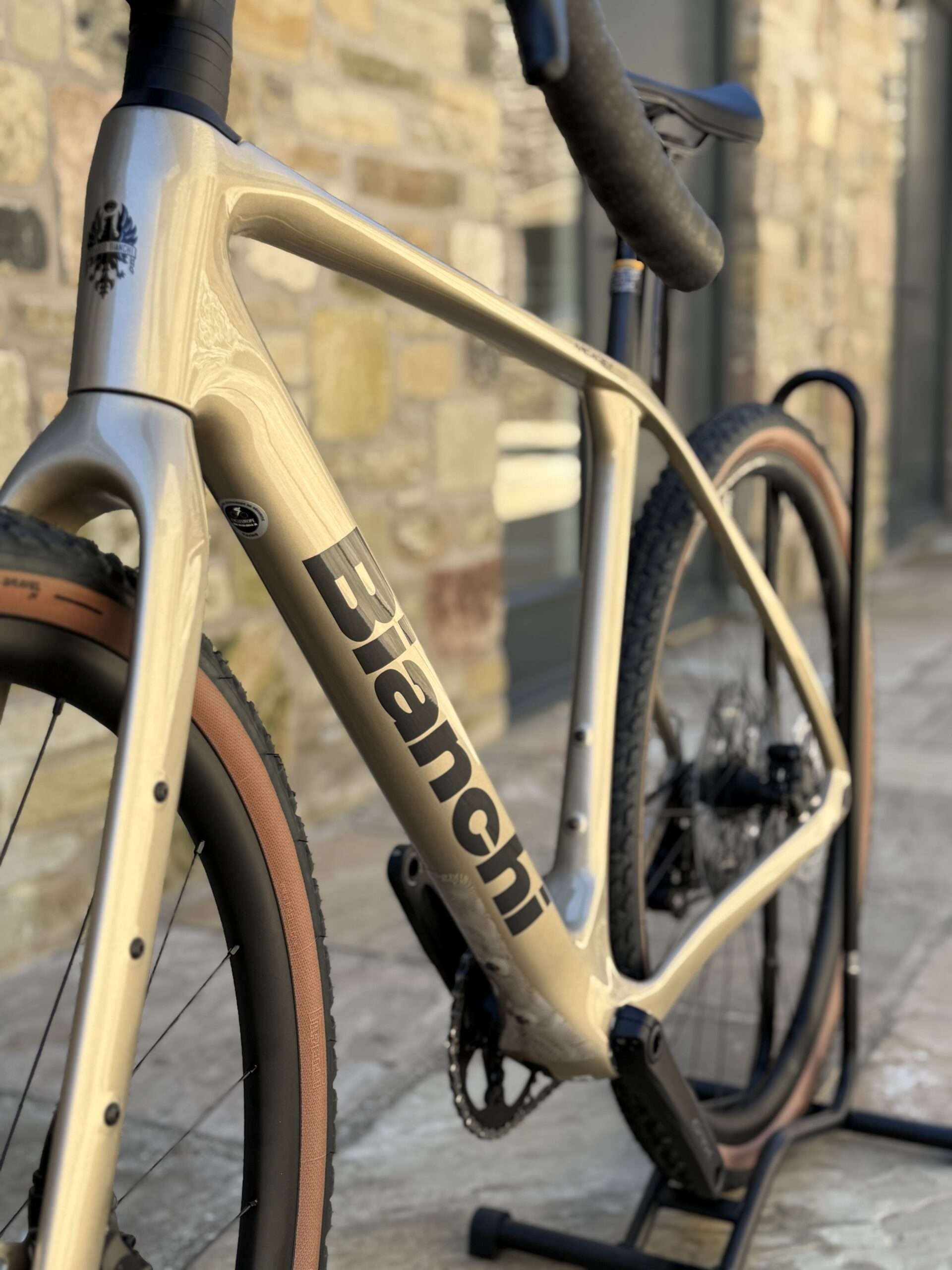

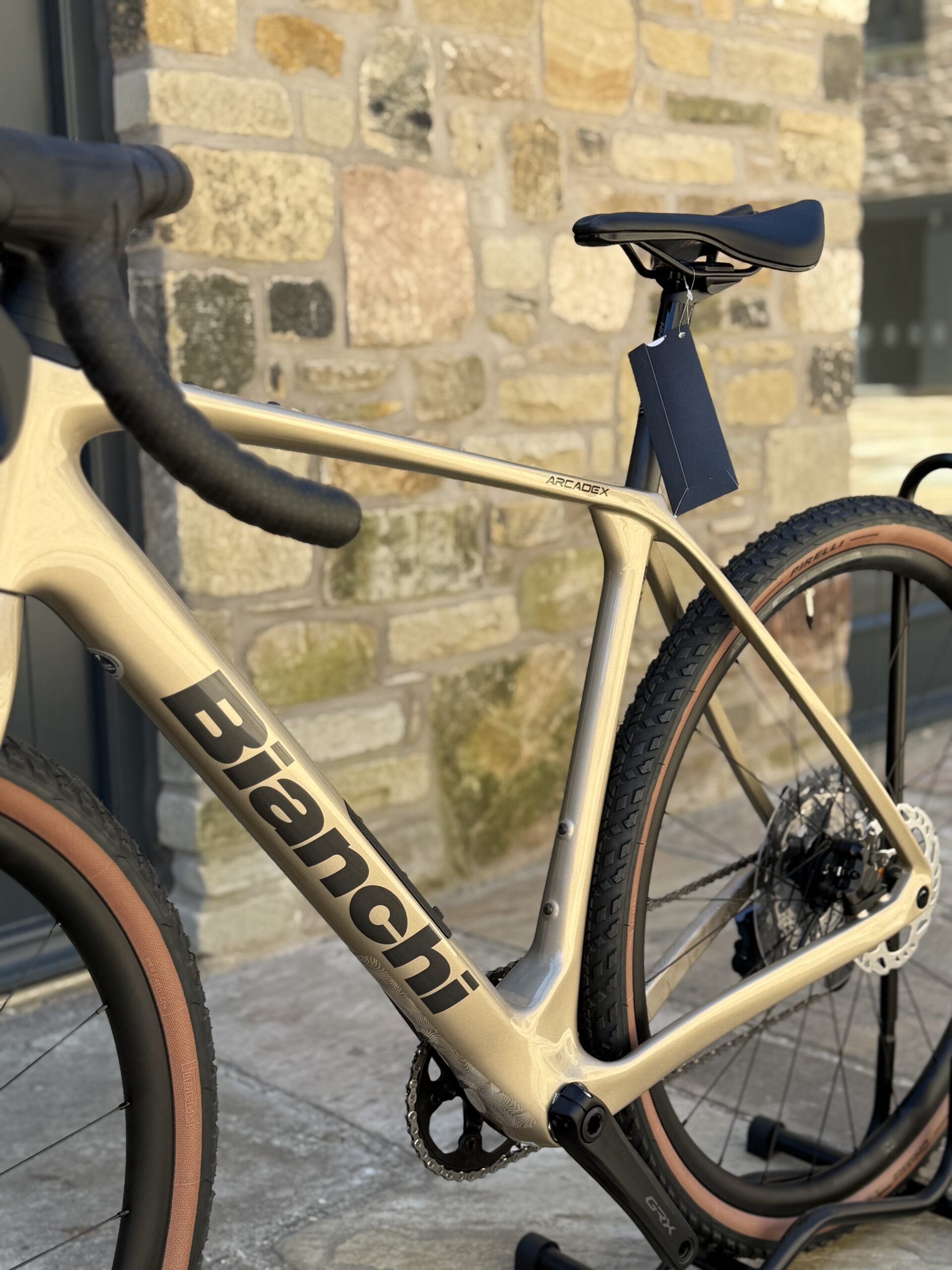

The carbon fibre frame of the Arcadex benefits from a dedicated endurance geometry, specifically suited to long-distance rides and expeditions that see you in the saddle on back-to-back days. It is offered in Pro and Comp versions.

Both Pro and Comp are spec’d as standard with Velomann integrated cockpit. Both models are also upgradeable with Bianchi’s fully-integrated monocoque carbon fibre handlebar, developed by Reparto Corse. The Arcadex has clearance for up to 700c x 50mm tyres. It can also be run with clip-on fenders/mudguards. The bicycle is rated for ASTM 2 usage on off-road surfaces and all specifications feature a Mitora 149 H1 saddle to provide the all-day comfort you need for multi-day escapes.

Product Specification

TECHNICAL SPECIFICATION

  • YEAR - 2026
  • PRODUCT TYPE - Gravel
  • CATEGORY NAME - BIKE
  • SUBCATEGORY NAME - ADVENTURE
  • MODEL - Arcadex Comp
  • FRAME - Bianchi Arcadex, Carbon, Flat mount disc, PressFit 86.5x41 mm, Thru axle, OLD: 142 mm, Rear derailleur: Sram UDH hanger type, Tire clearance: ETRTO 622-50 sizes XS-SM-MD-LG-XL

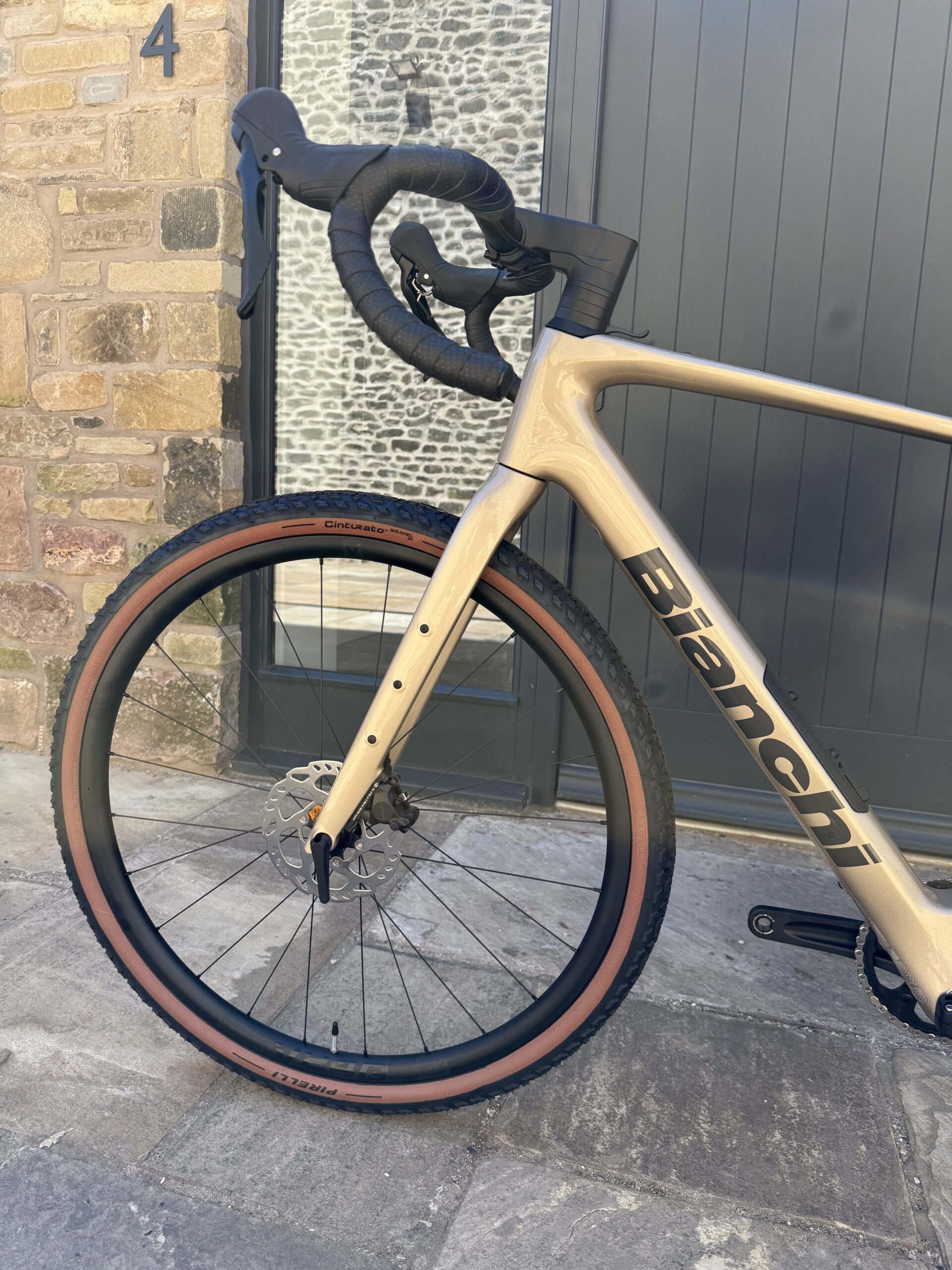

  • FORK - Bianchi Arcadex, Carbon, flat mount disc brake, thru axle 12x100 mm
  • HEADSET - Acros for internal cable routing
  • SHIFTERS - Shimano GRX, shifter lever ST-RX610, caliper BRRX400

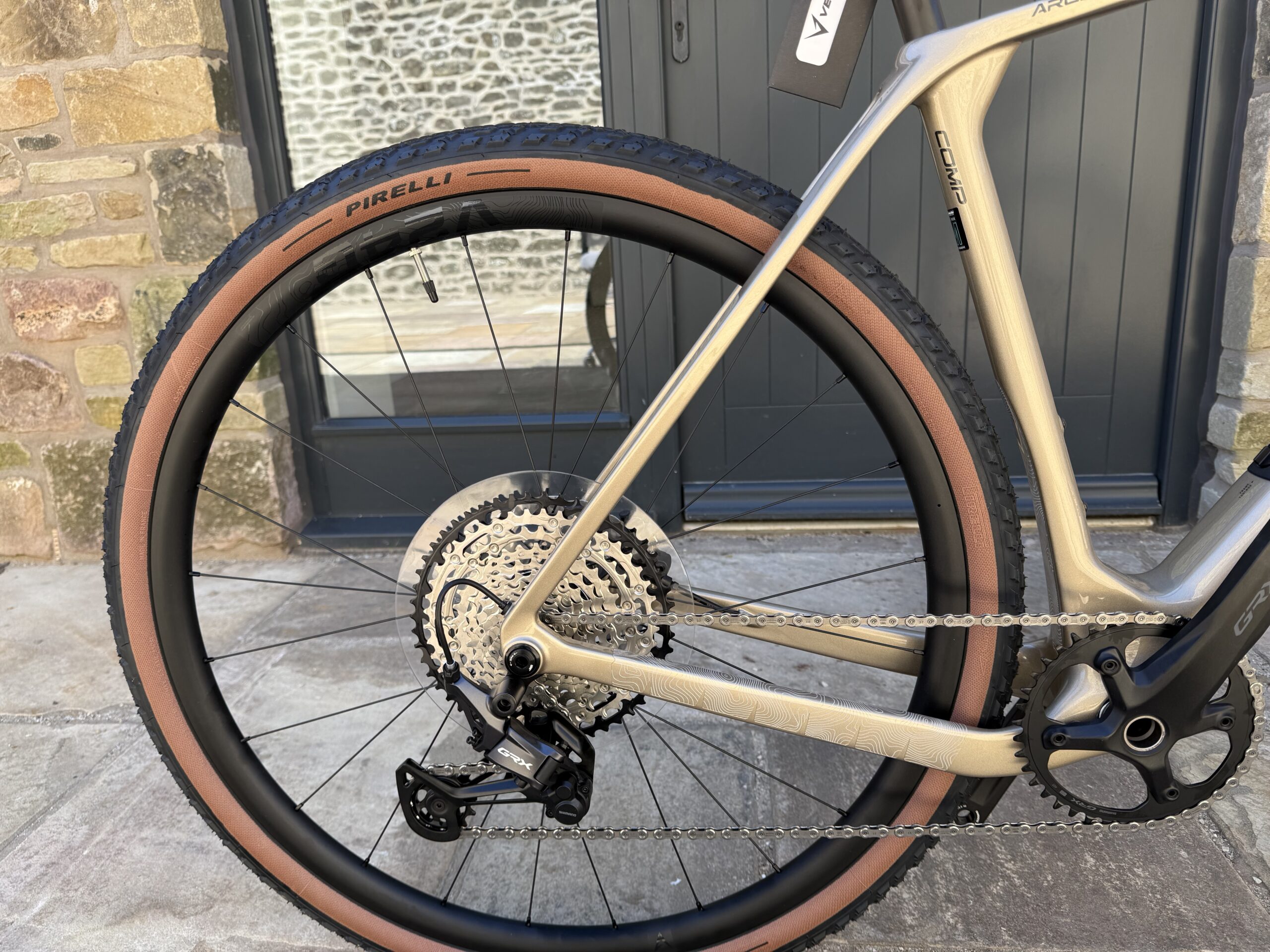

  • REAR DERAILLEUR - Shimano GRX, RD-RX822, 12sp
  • CRANKSET - Shimano GRX, FC-RX610, 40T Crank length: 170 mm (XS-SM); 172.5 mm (MD-LG); 175 mm (XL)
  • BB - Shimano SM-BB72-41B, press fit type for road
  • CHAIN - Shimano 105, CN-M7100
  • SPROCKET - Shimano SLX, CS-M7100, 10-51T, 10-12-14-16-18-21-24-28-33-39-45-51T

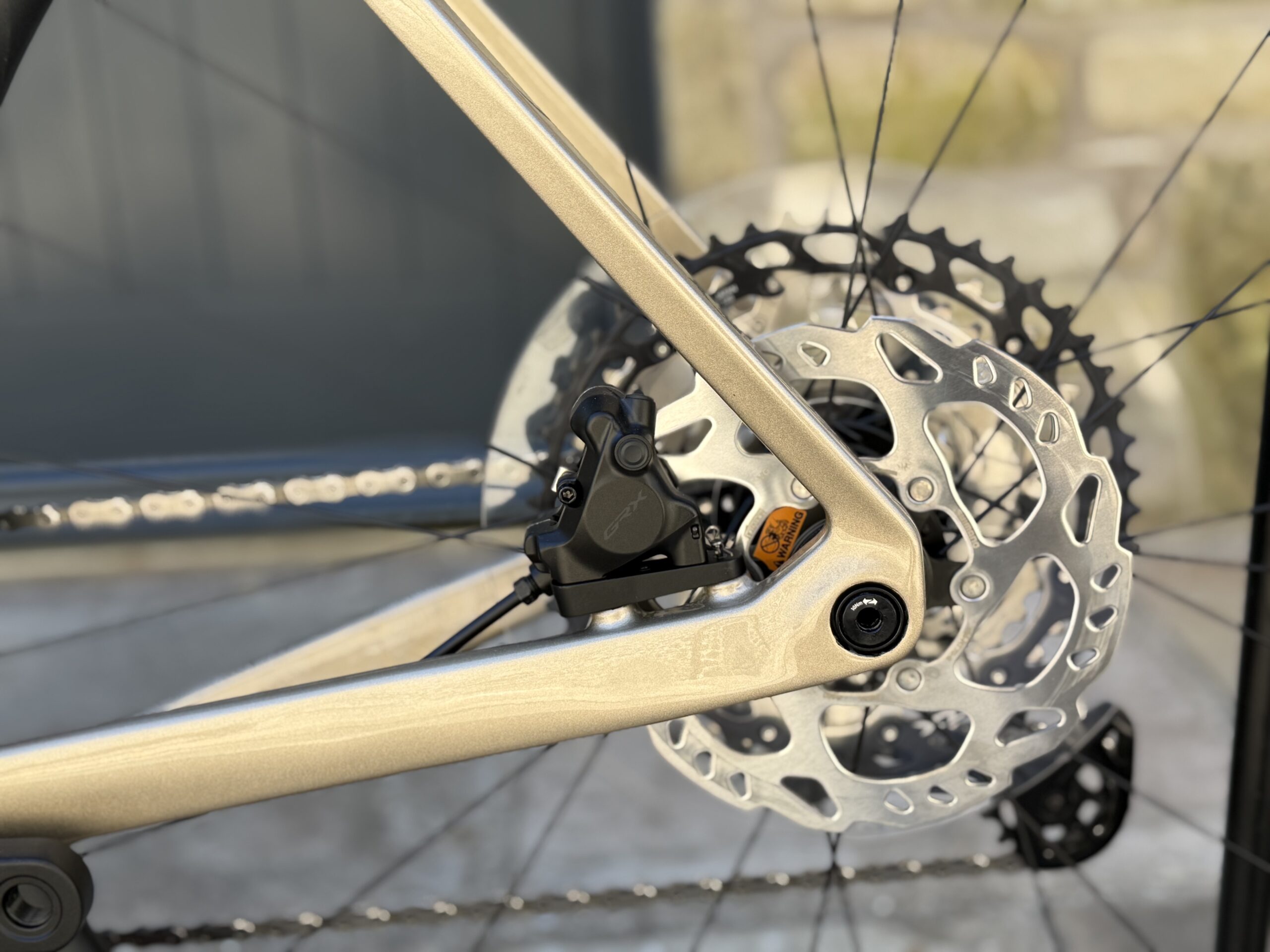

  • BRAKES - Shimano BR-RX410 Hydraulic disc brake
  • BRAKE LEVERS - Included in the shifter
  • WHEELS - Velomann V24G, Aluminium rim, profile height 24 mm, 700x24c, 24h, HG11 body
  • TIRE - Pirelli Cinturato Gravel M, 700x45, 120 TPI
  • STEM - Velomann AL6061, fully internal cable routing stem, compatible with Acros ICR system Size: 80 mm (XS-SM); 90 mm (MD); 100 mm (LG); 110 mm (XL)
  • HANDLEBAR - Velomann Gravel, Aluminium, diameter 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg, Size: 400 mm (XS-SM); 420 mm (MD-LG); 440 mm (XL)
  • TAPEHANDLEBAR - Bianchi Hexagon tape, 2.5 mm thickness, black
  • SEATPOST - Velomann Carbon, offset 15 mm, diameter 27.2 mm length: 300 mm (XS); 350 mm (SM-XL)
  • SEATPOST QR - Bianchi Custom
  • SADDLE - Velomann Mitora 149 H2, steel rails, length 250 mm, width 149 mm

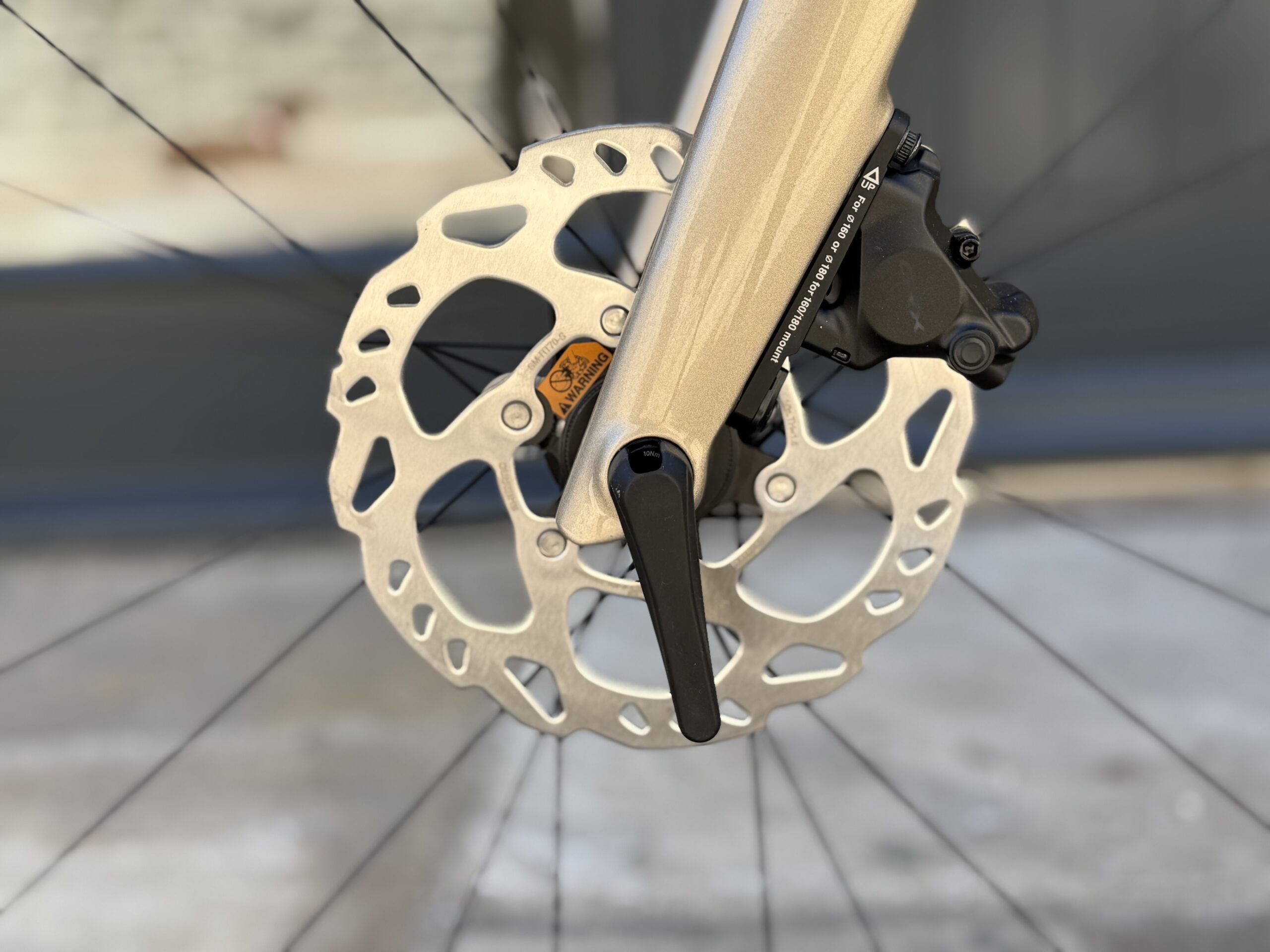

  • ROTOR - Shimano SM-RT70 Center Lock with Ice Tech, 160 mm

Additional information

Brand

Bianchi

Colour

Metal Sand / Graphite Gloss

Season

2026
